Photo, Blueprint & Video Gallery — Quanhui Modular Housing

Verified Video Demonstrations

Watch Real Unfolding, Factory & Interior Walkthroughs

See every detail of the Quanhui Modular Housing expandable container house in action: from high-speed factory fabrication to full crane placement and finished interior room tours.

Quanhui Modular Housing 90-Minute Unfolding Video

Video Walkthrough 1

Factory Unfolding & 90-Min Setup Process

Watch real mechanical deployment footage showing counterweighted wing expansion, roof purlin locking, and perimeter rubber weather-stripping installation.

Quanhui Modular Housing Finished Interior Walkthrough

Video Walkthrough 2

Turnkey Interior Room-by-Room Inspection

Full HD walkthrough of the fitted kitchen suite, partitioned wet/dry bath with sliding glass shower, primary bedroom wing, and 120/240V breaker distribution.

Quanhui Modular Housing Crane Offloading Walkthrough

Video Walkthrough 3

Crane Rigging & Foundation Placement

Watch standard mobile crane offload from the flatbed hauler, corner ISO rigging attachment, and final bolt-down onto reinforced concrete sonotube piers.

Interactive Mechanical Simulation

Interactive 4-Stage Unfolding Demonstration

Experience how our precision counterbalanced hinges and structural steel chassis expand from a road-legal 7.4ft intermodal shipping envelope into a full 400+ sq ft 2-bedroom home in under two hours.

PHASE 1 • ROAD-LEGAL CONTAINER ENVELOPE

Intermodal Arrival & Foundation Rigging

The home arrives on a standard flatbed trailer with folded dimensions of 5.9m (19.4ft) L × 2.25m (7.4ft) W × 2.54m (8.3ft) H. A 20–25 ton crane or telehandler connects to the 4 ISO corner castings to place the chassis onto your prepared foundation slab or concrete piers in under 15 minutes.

Folded Width

7.4 ft (2,250 mm)

Setup Time

15 Minutes

Filter Visual Assets

High-Resolution Photo & Blueprint Library

Exterior Architecture

Zoom

Modern Turnkey Architectural Exterior

Dual-wing expandable container home deployed on concrete foundation with custom cedar wood-slat accents, perimeter LED soffit lighting, and expanded outdoor composite living deck.

Open-Concept Living & Quartz Kitchen Suite

Luxury Interior

Zoom

Open-Concept Living & Quartz Kitchen Suite

Spacious open-concept interior featuring luxury herringbone oak SPC flooring, 8.5ft ceilings, quartz waterfall island, induction cooktop, and panoramic floor-to-ceiling double-glazed sliding glass doors.

Luxury Interior

Zoom

Primary Master Bedroom Suite

Private primary bedroom wing with twin black aluminum awning windows, custom floor-to-ceiling wardrobes, and structural steel accents painted warm neutral tones.

Luxury Interior

Zoom

Luxury Wet/Dry Separated Bathroom

Factory pre-installed full bathroom featuring frameless glass sliding rainfall shower, marble porcelain wall tiles, floating oak vanity with LED backlit mirror, and dual-flush toilet.

CAD Blueprint

Zoom

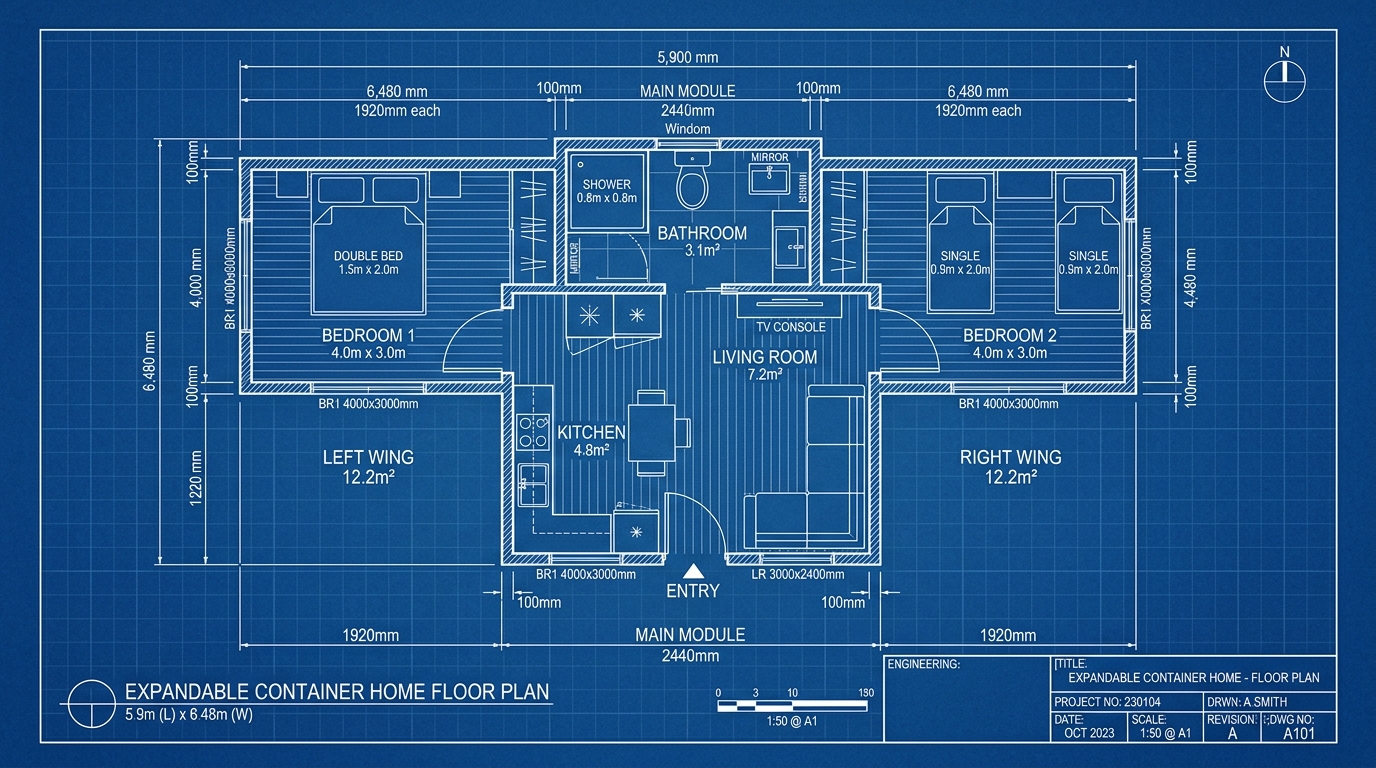

Architectural CAD Floor Plan Blueprint

Dimensioned architectural floor plan drawing showing 411 sq ft (38.2 m²) 2-bedroom layout, door swings, and window callouts. Suitable for city ADU permit submission.

Engineering Drawing

Zoom

4-Stage Mechanical Unfolding Sequence

Isometric engineering sequence illustrating step-by-step wing unfolding, roof elevation, floor panel extension, and weatherproof gasket locking.

Foundation Plan: Piers & Monolithic Slab

Civil Drawing

Zoom

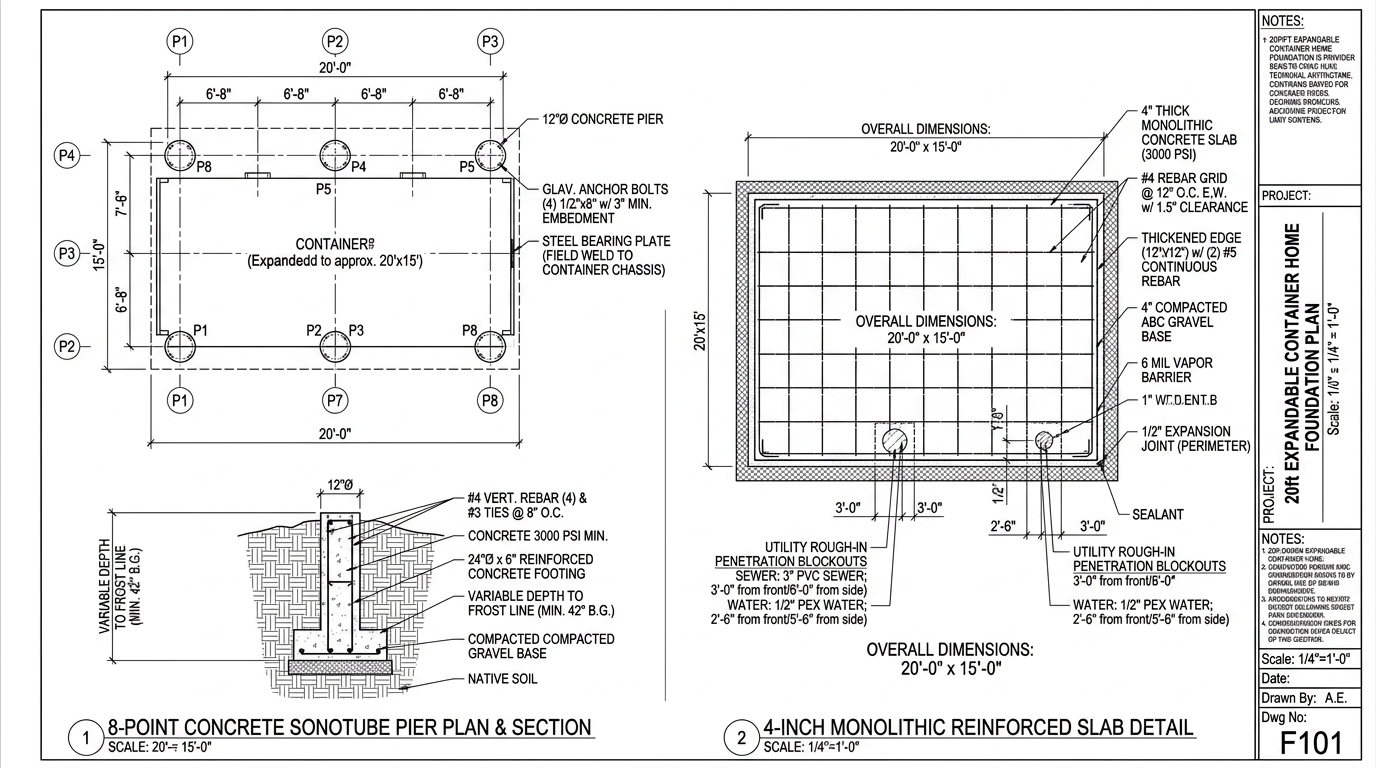

Foundation Plan: Piers & Monolithic Slab

Detailed civil foundation drawing providing exact anchor bolt coordinates, concrete pier depths, rebar grid schedules, and sewer/water rough-in sleeves.

Structural Blueprint

Zoom

Chassis & Pivot Hinge Isometric Detail

Exploded structural engineering blueprint of 3.0mm Q235B galvanized steel framework, heavy stainless hinges, and EPDM compression gaskets.

Electrical Diagram

Zoom

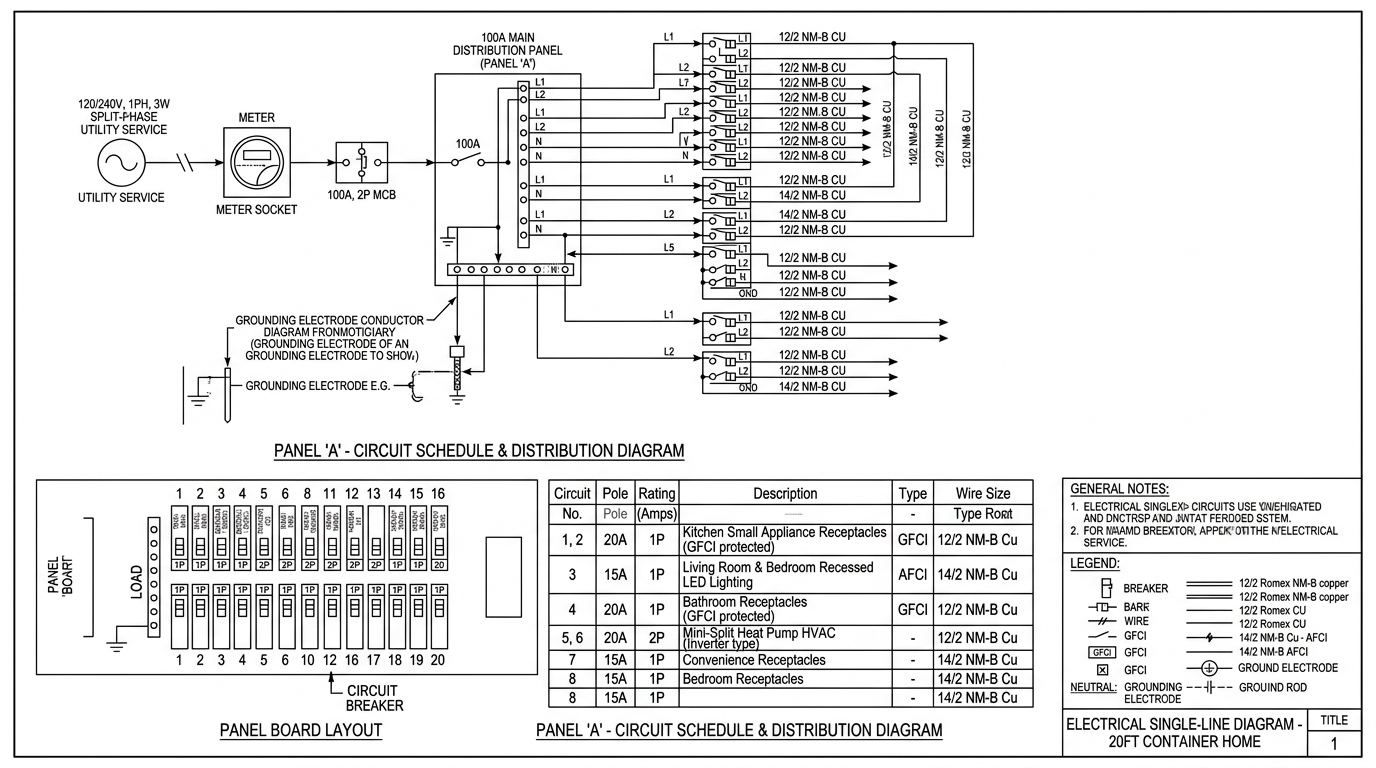

120/240V Electrical Circuit Schematic

100A main service distribution panel schematic, circuit breaker schedule, 12/2 Romex wire runs, and GFCI/AFCI protection layout.

Plumbing Diagram

Zoom

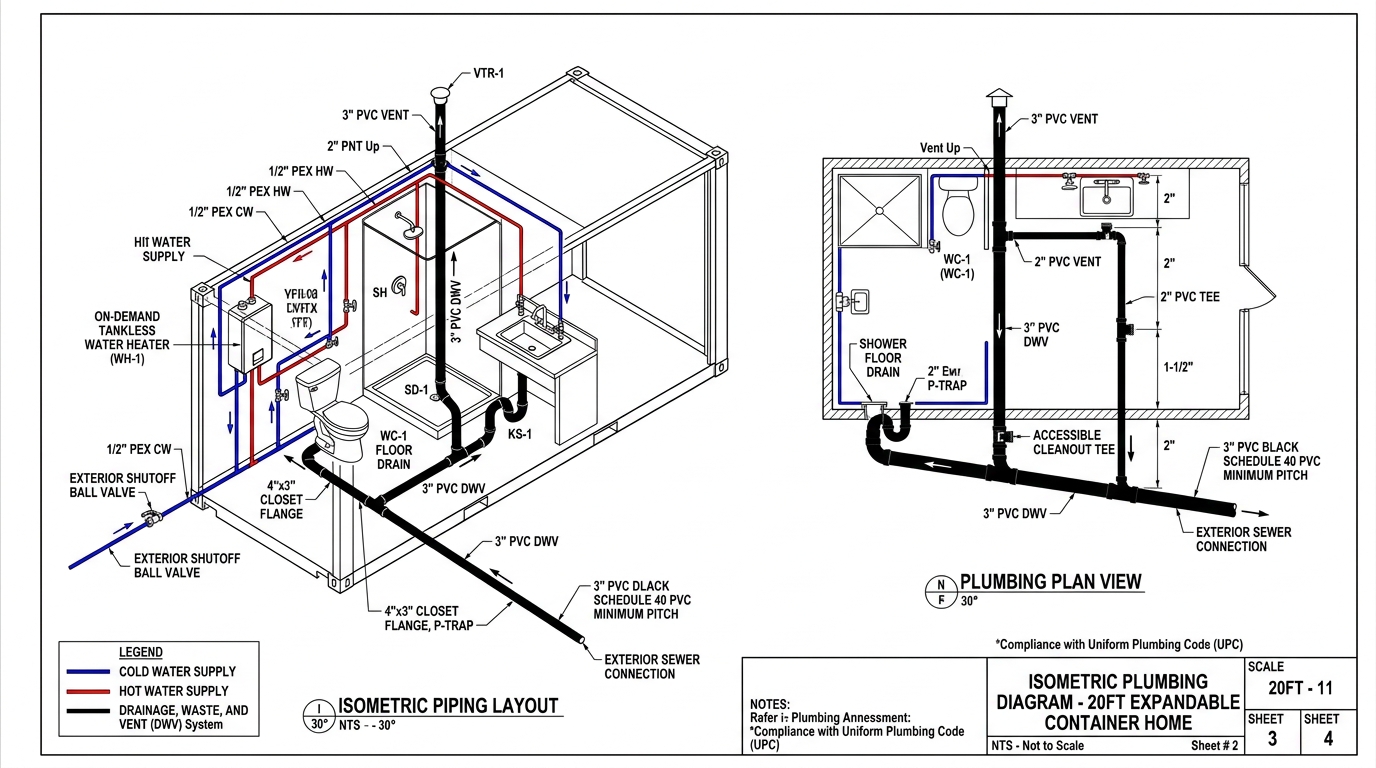

Plumbing DWV & PEX Supply Isometric

Piping schematic showing 3" PVC sanitary drainage, roof vent stack, tankless on-demand water heater, and 1/2" PEX hot/cold plumbing manifold.

Jobsite Logistics

Zoom

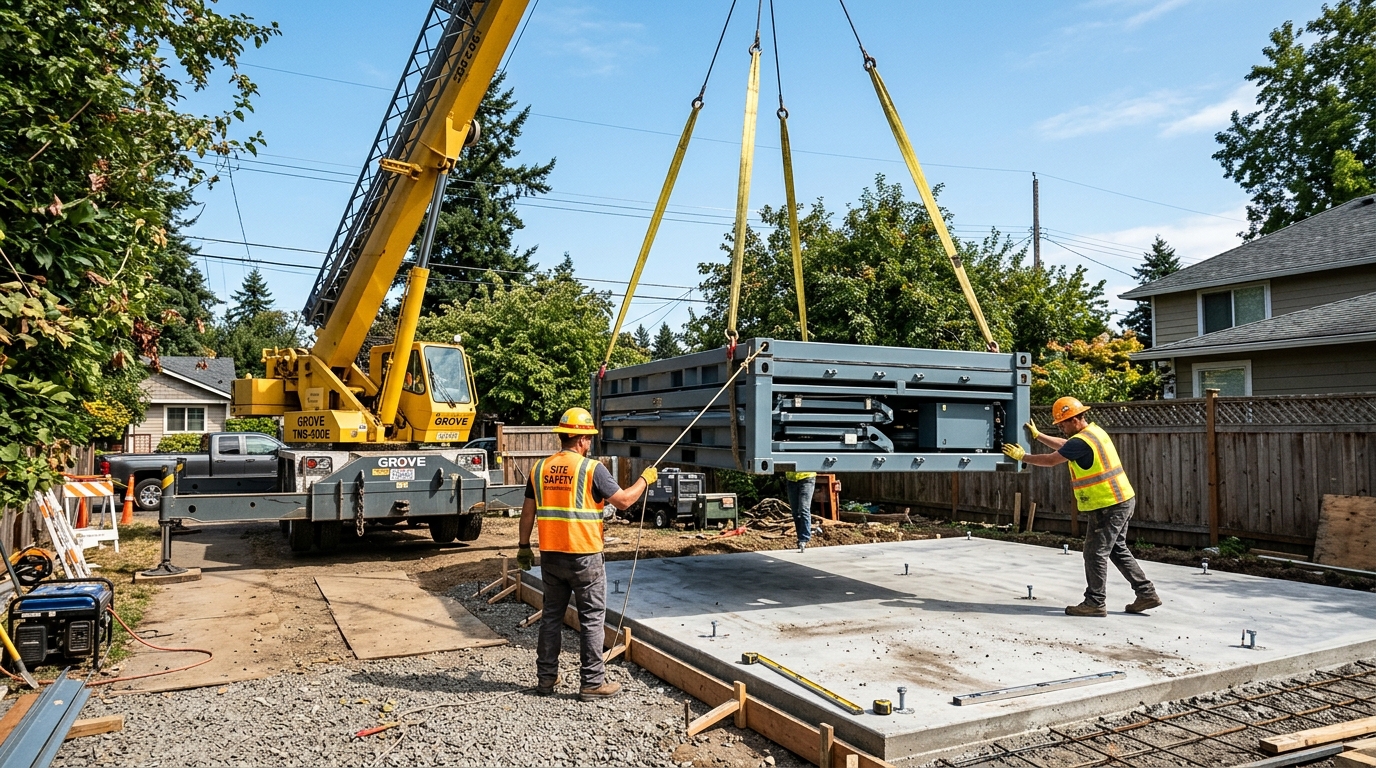

Jobsite Crane Offload & Slab Placement

25-ton mobile crane rigging folded steel home via ISO corner castings, guiding unit into position onto prepared concrete slab with anchor bolts.

Factory Robotic Welding & Chassis Assembly

Manufacturing Quality

Zoom

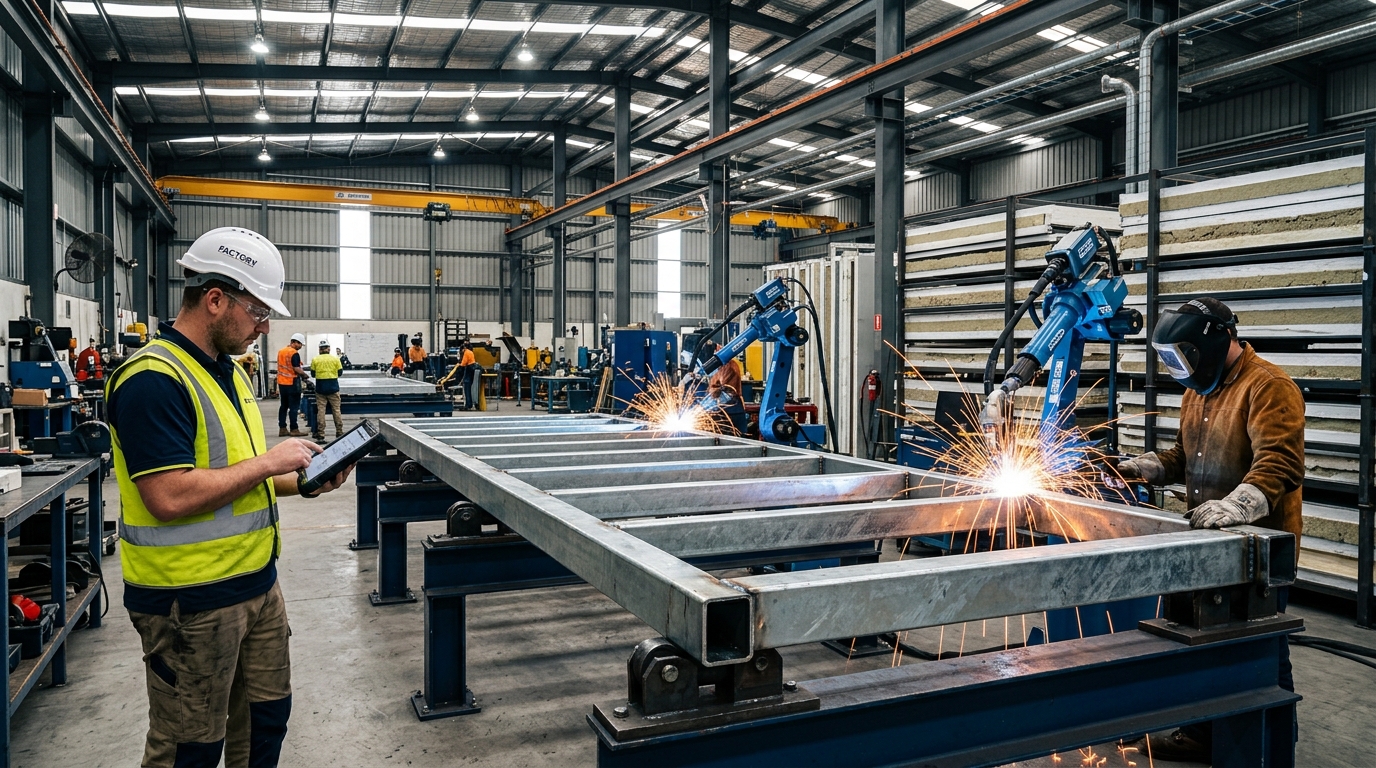

Factory Robotic Welding & Chassis Assembly

Automated MIG robotic welding cells and laser cutting stations fabricating high-tensile galvanized steel chassis frames inside the main factory bay.

Ocean Shipping

Zoom

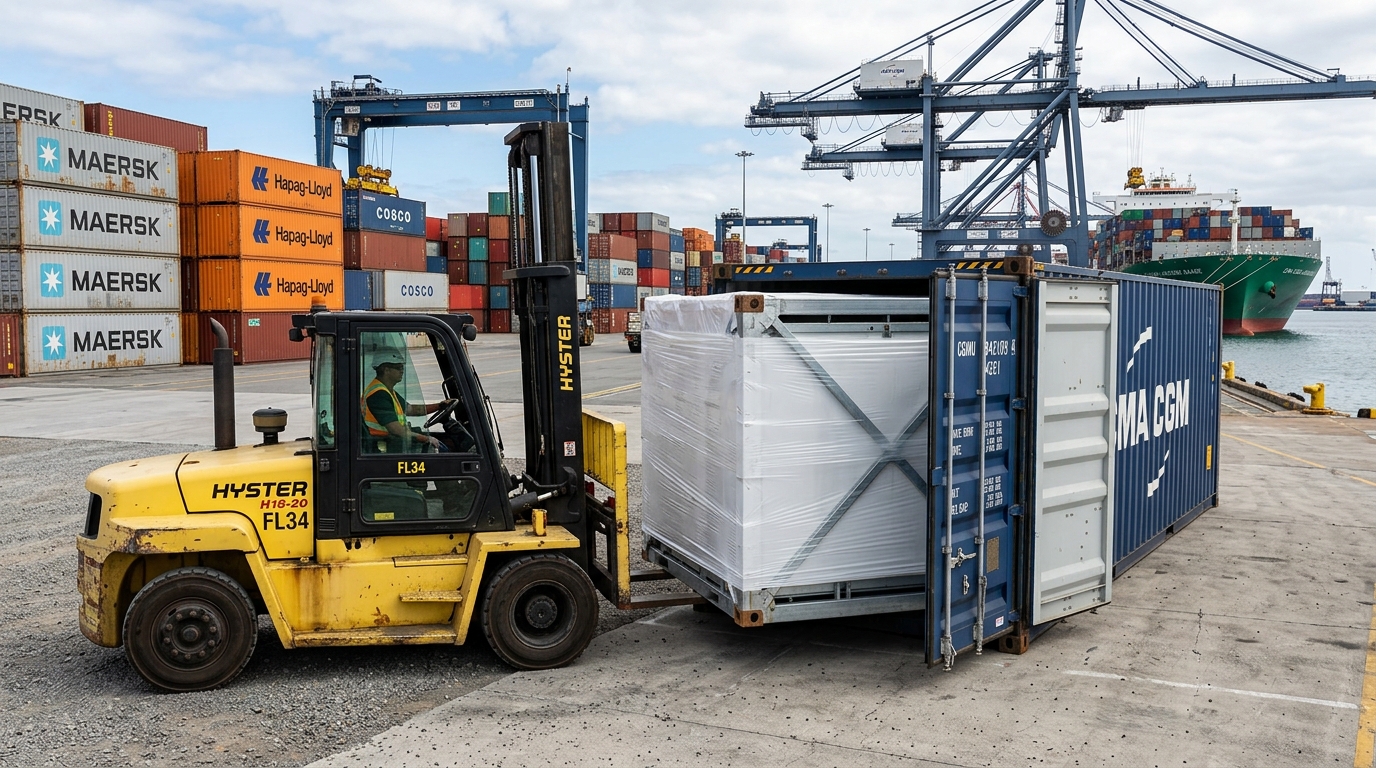

40HQ Marine Container Freight Loading

Heavy-duty port forklift inserting stretch-wrapped folded home into a 40ft High Cube container. Two complete homes fit in a single 40HQ container.

Quanhui Modular Housing Complete Visual Gallery & Blueprints

Watch Real Unfolding, Factory & Interior Walkthroughs

Factory Unfolding & 90-Min Setup Process

Turnkey Interior Room-by-Room Inspection

Crane Rigging & Foundation Placement

Interactive 4-Stage Unfolding Demonstration

Intermodal Arrival & Foundation Rigging

High-Resolution Photo & Blueprint Library

Modern Turnkey Architectural Exterior

Open-Concept Living & Quartz Kitchen Suite

Primary Master Bedroom Suite

Luxury Wet/Dry Separated Bathroom

Architectural CAD Floor Plan Blueprint

4-Stage Mechanical Unfolding Sequence

Foundation Plan: Piers & Monolithic Slab

Chassis & Pivot Hinge Isometric Detail

120/240V Electrical Circuit Schematic

Plumbing DWV & PEX Supply Isometric

Jobsite Crane Offload & Slab Placement

Factory Robotic Welding & Chassis Assembly

40HQ Marine Container Freight Loading

Need Stamped CAD / DWG Files for Municipal Permitting?
